In the world of UAV mapping, drones often take the spotlight for their speed, efficiency, and ability to capture high-resolution aerial data. However, what many professionals overlook is that the true accuracy of any drone survey does not come from the drone alone—it is built on the quality of ground data collection.
Ground data collection is the backbone of precise drone mapping. Without it, even the most advanced UAV systems can produce inaccurate or misaligned results. Whether the project involves infrastructure, mining, or disaster assessment, proper ground control is what transforms aerial imagery into reliable, survey-grade data.
Why Ground Data Collection is Critical
When a drone captures images, it records visual data along with approximate GPS coordinates. However, these onboard GPS systems usually provide meter-level accuracy, which is not sufficient for engineering or surveying applications.
To achieve centimeter-level accuracy, ground reference points are required. These points act as anchors that align aerial data with real-world coordinates. Without proper ground control, errors can accumulate across the dataset, leading to incorrect measurements, misaligned maps, and flawed decision-making.
Ground data ensures that:
- The orthophoto is correctly georeferenced
- Elevation models reflect true terrain conditions
- Measurements such as distance, area, and volume are accurate
- Engineering designs based on the data are reliable
What is Ground Data Collection in UAV Survey?
Ground data collection involves capturing precise location points on the ground using high-accuracy equipment such as DGPS (Differential GPS) or RTK systems. These points are commonly known as Ground Control Points (GCPs) and Check Points (CPs).
GCPs are used during data processing to align and calibrate drone imagery, while check points are used to validate the accuracy of the final output. Together, they ensure that the entire mapping workflow meets survey-grade standards.
Types of Ground Points Used
In a professional drone survey, two types of ground points are typically collected.
Ground Control Points are physical markers placed on the ground and measured using DGPS. These points are clearly visible in drone images and are used to tie the aerial data to real-world coordinates.
Check Points, on the other hand, are not used in processing but are reserved for accuracy validation. They help verify how close the final model is to actual ground conditions.
Both types of points are essential for maintaining data integrity and ensuring confidence in the results.
How Ground Data Collection is Done
The process of ground data collection begins with proper planning. Before the drone flight, surveyors identify suitable locations for placing GCPs. These locations should be evenly distributed across the survey area, covering edges, corners, and elevation variations.
Once the locations are finalized, physical markers are placed on the ground. These markers are designed to be easily visible from the air, often using high-contrast patterns.
Surveyors then use DGPS or RTK equipment to record the exact coordinates of each point. This step requires precision and proper satellite connectivity to ensure high accuracy.
After the drone flight, these ground points are marked in the photogrammetry software, allowing the system to align the aerial images accurately.
Best Practices for Ground Data Collection
Accurate ground data collection is not just about placing a few points—it requires a systematic approach.
Points should be well distributed across the entire survey area rather than clustered in one location. Uneven distribution can lead to distortion in certain parts of the map.
Markers must be clearly visible in drone imagery. Poor visibility can make it difficult to identify points during processing, reducing accuracy.
Surveyors should ensure that DGPS readings are stable and taken under good satellite conditions. Obstructions such as trees, buildings, or terrain can affect signal quality.
It is also important to maintain proper documentation of each point, including its location, ID, and coordinates, to avoid confusion during processing.
Common Mistakes to Avoid
Many beginners in drone surveying underestimate the importance of ground data, leading to errors in their final outputs.
One common mistake is using too few ground control points. This can result in poor alignment and reduced accuracy, especially in large or complex areas.
Another mistake is improper placement of points. Placing all points in flat or easily accessible areas while ignoring elevation changes can cause inaccuracies in terrain modeling.
Skipping check points is another critical error. Without validation, it becomes difficult to assess the accuracy of the final data.
Lastly, relying solely on drone GPS without ground control is a major limitation for projects that require high precision.
Role of Ground Data in Real Projects

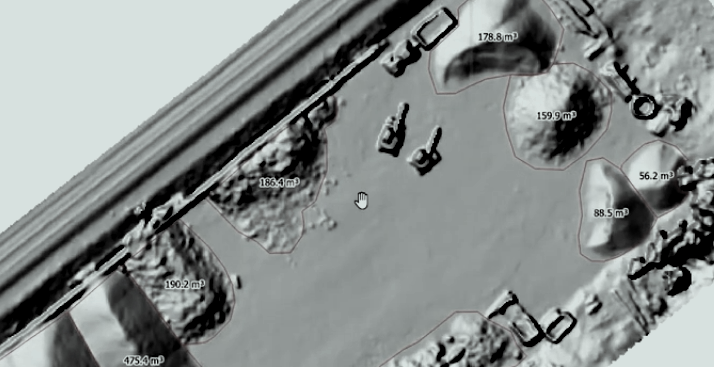

In real-world scenarios, such as landslide assessment, road construction, or mining operations, ground data plays a crucial role. For example, when calculating the volume of displaced material in a landslide, even small errors in elevation can lead to significant miscalculations.
Similarly, in infrastructure projects, incorrect alignment can result in costly design errors. Ground data ensures that all measurements are accurate and reliable, enabling confident decision-making.
The Future of Ground Control in UAV Mapping
With advancements in drone technology, systems like RTK and PPK-enabled drones are reducing the dependency on large numbers of ground control points. However, ground data collection is still essential for validation and ensuring the highest level of accuracy.
In high-stakes projects, combining UAV data with ground control will continue to be the industry standard. As technology evolves, the process may become faster and more automated, but the importance of ground truth data will remain unchanged.
Ground data collection is not just a supporting step in drone surveying—it is the foundation of accuracy. While drones capture the data, it is the ground control that ensures its reliability.
